Description

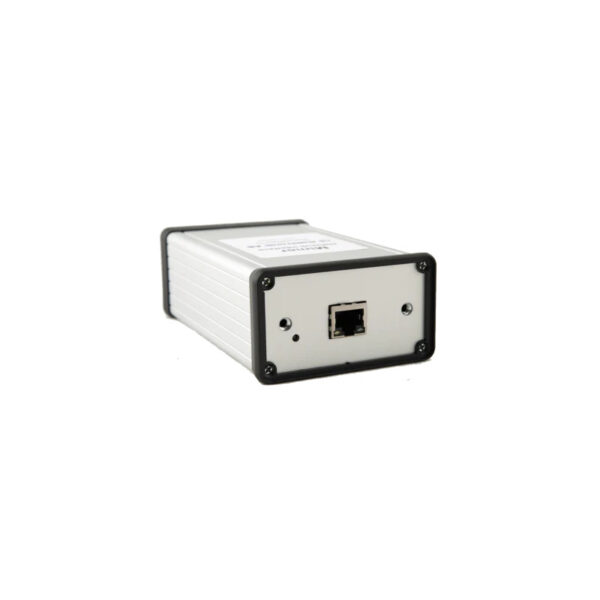

Mimer Network Interface. Mimer SoftRadio network interface connects a wide range of radios, telephone lines, intercoms, PA systems and other hardware devices.
Use Mimer SoftRadio to control and operate your communications equipment via an internet connection.
The Network Interface has connections for audio input and output. It also connects to I/O control signals like Squelch, PTT, Alarm, Off-hook, etc. as well as PEIÂ and other radio remote control signals.
Mimer SoftRadio network interface operates on 12VDC power supply so can easily be integrated with most existing radio models.
Mimer SoftRadio replaces analogue line controllers by allowing you to operate and control base stations and repeaters via a PC.
Standard features include:-
- I/O ports – 3 inputs
- AUX data port – RS232 compatible
- Data I/O for radio control – RS232; TTL; USB
- Open collector outputs – 3
- Power supply – Â 9-30 VDC / 250 mA (R6). 9-18 VDC / 250 mA (R5).
- Connectors – D-sub for audio, power, I/O, data and auxiliary I/O RJ45 for Ethernet
Radio models compatible with Mimer SoftRadio includes:-
- Motorola
- ICOM
- Sepura
- Kenwood
- Sailor
- Jotron
- Hytera
- Kairos
- TP Radio
- Trig
- Vokkero
- Damm
- Barrett
