UHF 6 Cavity Duplexer N Type [406-470MHz]

£285.00

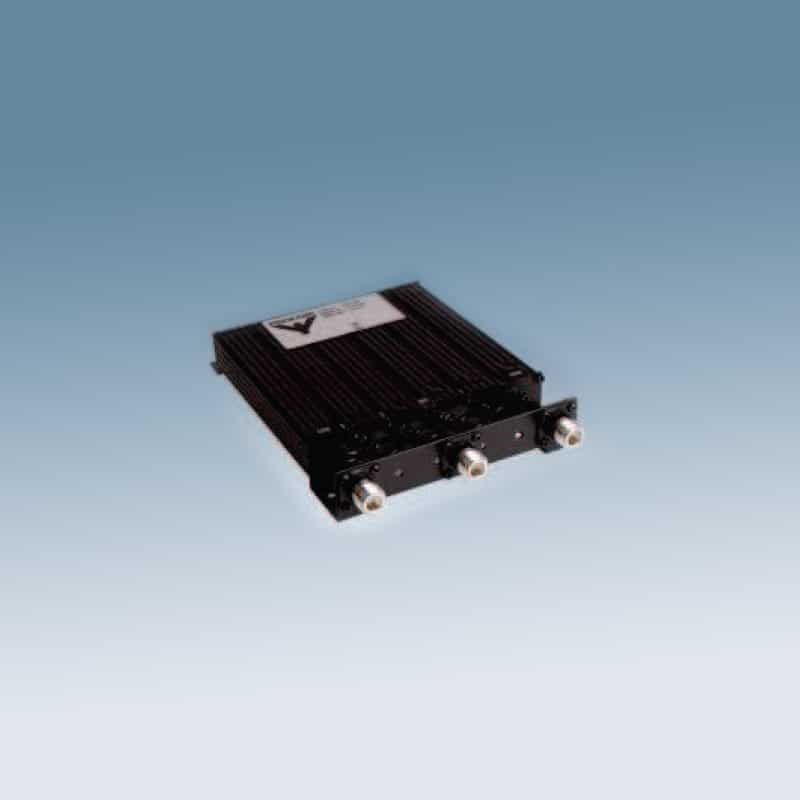

The DPF 7-/6-150 6 cavity duplexers cover the UHF band from 406-470MHZ. Duplex spacings from 2-15MHz are available. Fitted with female N type connectors.

Add to quote
SKU: DPF 70/6-150-2/3

Description

MODEL

DPF 70/6-150-2/3-¾

DPF 70/6-150-3/5

CAVITY TYPE

¾ λ



¼ λ



TX/RX FREQUENCY

406 – 470 MHz

MAX. INPUT POWER

150 W

TUNING

Single-

channel

tuned.

Spacing

= 2 MHz

100 W

Single-

channel

tuned.

Spacing

= 3.5 MHz

100 W

Single-

channel

tuned.

Spacing

= 5 MHz

150 W

Multi-

channel

tuned.

Spacing

= 5 MHz

Port width

= 2 MHz

100 W

INSERTION LOSS

TX – ANT. AND

ANT. – RX

≤ 1.4 dB

≤ 1.3 dB

≤ 1.2 dB

≤ 1.4 dB

TX NOISE SUPPRESSION

ON RX-FREQ.

> 70 dB

> 80 dB

> 80 dB

> 60 dB

RX ISOLATION ON

TX-FREQUENCY

> 70 dB

> 80 dB

> 80 dB

> 60 dB

DUPLEX SPACING

2 – 3 MHz

3 – 5 MHz

IMPEDANCE

Nom. 50 Ω

SWR

≤ 1.5

≤ 1.5

≤ 1.5

≤ 1.5

Additional information

Weight 3.000 kg
Model

, , , , , , ,

Feature

, , , , , ,

Brand

Universal
